Algorithmic improvements for radio interferometry

January 01, 2021

Radio telescopes observe the sky in a very indirect fashion. Sky images in the radio frequency range therefore have to be computed using sophisticated algorithms. Scientists at the MPI for Astrophysics have developed a series of improvements for these algorithms, which help to improve the telescopes' resolution considerably.

The 27 antennas of the Very Large Array (VLA) in New Mexico observe the sky simultaneously, forming a single virtual telescope with a gigantic diameter.

Optical telescopes produce data, which are a direct representation of the observed object's brightness distribution, i.e. an image in the conventional sense, which can be used for further analysis without additional processing. In radio interferometry (i.e. the high-resolution observation of the sky at radio frequencies), the situation is more complicated: here one does not obtain the sky brightness at a specific location, but rather data points indicating the amount, frequency and direction of brightness fluctuations.

If these data points were arranged on a regular two-dimensional grid, converting them to a normal image would be straightforward, but unfortunately no radio telescope design exists which could produce this arrangement. Realistic data point distributions often exhibit complex, inhomogeneous patterns (see fig. 3). Further complications arise if the individual antennae are not placed perfectly on a single plane, and/or if the observed sky region is too large to be approximated by a flat surface. In this case, additional correction terms have to be applied during the image generation, which further increases the computational cost.

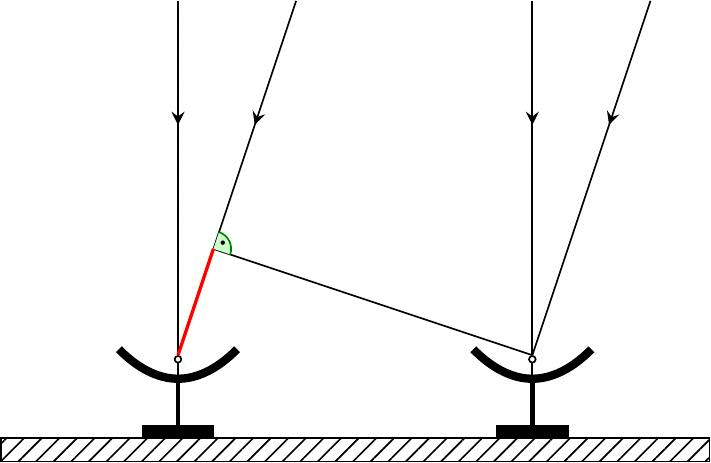

Schematic illustration of an interferometer: A larger distance of two sources in the sky leads to an increased difference in travel time (marked red) as does a larger distance between antennae. Antennae placed at larger distances are therefore able to resolve smaller structures, while antennas placed closely together are more sensitive to larger structures.

The operation described above is called "gridding" and in practice various different implementations exist. Some are not particularly accurate (usually because they date back to the early times of radio astronomy, when computational power was very limited and many approximations and simplifications had to be made). Others provide good accuracy, but often are not fast enough to process the huge amounts of data produced by contemporary radio telescopes in an acceptable amount of time.

Scientists at MPA have now used various approaches – both from both radio astronomy itself and from unrelated scientific areas – to implement a new version of the gridding operation. This new implementation produces very accurate results while at the same time consuming considerably less CPU time and computer memory.

Central region of a typical radio interferometric coverage. The colours of the individual data points indicate the observed strength of spatial fluctuations of the flux density.

Gridding, however, is only one of several components necessary to produce realistic images from interferometric observations. To suppress noise in the data and eliminate the directional changes in antenna sensitivity, sophisticated iterative algorithms are employed. Traditionally, very often a variant of the so-called CLEAN algorithm is used, which is comparatively quick but does not provide an uncertainty estimate for the resulting image. In contrast to CLEAN-based methods, the MPA scientists developed an (admittedly significantly slower) approach, which delivers physically motivated results including error bars, making use of Information Field Theory and Bayesian statistics.

Fig. 4 shows a comparison of the two methods. The observed astrophysical source is the radio galaxy Cygnus A with a supermassive black hole (weighing more than a billion solar masses) at its centre. Two jets, observable at radio wavelengths, leave this centre and at some point encounter the intergalactic medium, where they are reflected and start to emit very brightly. The back-flows create large volumes of radio-bright gas, which can be observed with radio interferometers like the VLA.

Three different image reconstructions of the radio galaxy Cygnus A from VLA interferometry data. Two small regions (a bright and a dark one, respectively), have been enlarged for easier comparison.

Top panel: naive Fourier transform without optimization.

Middle panel: reconstruction using the CLEAN algorithm. A higher resolution is reached, but some unphysical structures are generated, especially in the darker regions.

Bottom panel: reconstruction using Bayesian imaging and Information Field Theory. Resolution in the bright areas is further improved, yet no artefacts are visible in the dark areas.
For a larger view of image reconstructions B and C, please see below.

The image obtained with the new algorithm exhibits significantly better spatial resolution in the bright image regions, since the signal-to-noise ratio in these areas is much higher. At the same time, it does not show the pronounced structures in the darker regions from the CLEAN results; presumably these structures are artefacts of the CLEAN algorithm which do not correspond to real features on the sky.

The methods presented here essentially open up two new possibilities for radio astronomy: they allow re-processing of already existing data sets, in order to gain additional insights from the improved images. For future observations, there may now be an option to reach the desired image quality with shorter observation times, thanks to the improvements in the algorithms, allowing for a higher overall number of observations.

Other scientific disciplines such as medical imaging, especially magneto-resonance tomography (MRT) employ imaging techniques that are closely related to those in radio interferometry. It is therefore possible that the insights gained from these developments will be beneficial in these areas as well.

Additional information:

The two last images from Fig 4 can be enlarged separately below.

Image reconstruction with the CLEAN algorithm.
Image reconstruction with the new algorithm developed at MPA.
